N10226-52B2PC, Разъем Micro-D на печатные платы

Артикул: N10226-52B2PC

3М

Описание

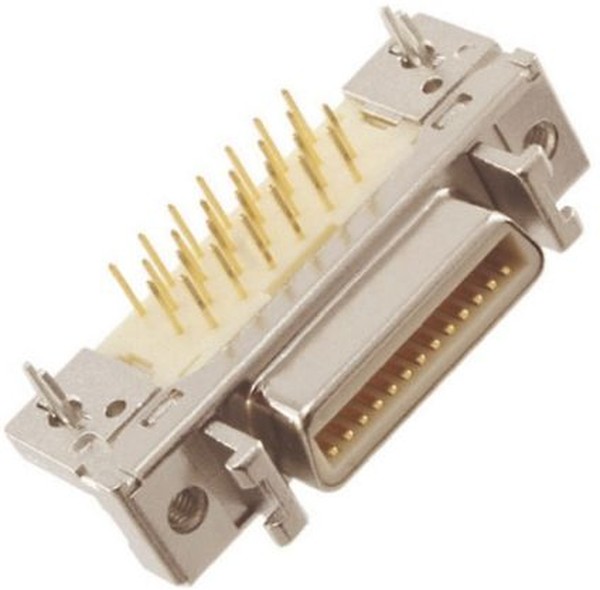

Metal Bodied 90° Panel Mount PCB I/O Receptacles (MDR)
These 3M 102 Series Mini D Ribbon (MDR) Boardmount Shielded Receptacles have a 0.050 inch (1.27 mm) pitch. The design of these 102 Series Mini D Ribbon (MDR) Boardmount Shielded Receptacles includes an interface latch for improved stability. The material of the main body of these 102 Series Mini D Ribbon (MDR) Boardmount Shielded Receptacles is metal.

Технические параметры

Gender Гнездо
Width 13.9мм
Contact Material Сплав меди
Brand 3м
Minimum Operating Temperature -55°C
Maximum Operating Temperature +105°C
Length 37.2mm
Housing Material Glass Fibre Reinforced PET
Contact Plating Золото поверх никеля
Dimensions 37.2 x 13.9 x 9.4mm
Current Rating 1A
Series MDR 102
Mounting Type Монтаж на плату в отверстия
Number Of Contacts 26
Body Orientation Прямой угол
Pitch 1.27мм
Depth 9.4мм
